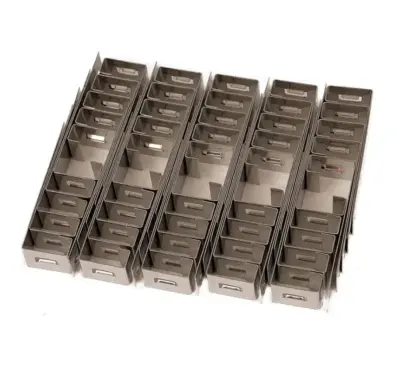

Batten end clips fix dry verge units to the batten end, providing a secure mechanical fixing into the end grain. Compliant with BS 5534 and BS 8612. Supplied in a box of 50.
Batten end clips are used to mechanically fix dry verge units to the end of the roofing batten. Fixed to the top of the batten, each clip engages with the face of the batten end to provide a secure, code-compliant connection between the dry verge unit and the roof structure. Without this fixing, a dry verge relies on friction alone, which does not satisfy current British Standards.
BS 5534 requires that dry verge systems are mechanically fixed rather than simply clipped in place. BS 8612 goes further, specifying that dry verge products must be fixed to a mechanical engagement on the face of the batten. Batten end clips are a straightforward way to meet both requirements without modifying the verge unit or the batten itself.
Why Batten End Clips Matter on a Dry Verge Installation
End grain fixing is often underestimated. A nail or screw driven into end grain offers significantly less pull-out resistance than a side-grain fixing, which is exactly why a purpose-made clip designed for this application performs better than improvised solutions. These clips seat firmly on top of the batten and grip the end face, spreading the load and holding the dry verge unit in position even under wind uplift.
For roofers working to current standards, fitting batten end clips is not optional on new builds or re-roofs. Building inspectors and warranty providers will look for evidence of mechanical fixing at the verge, and a missing clip is the kind of detail that gets flagged on an inspection. Supplied in a box of 50, this pack covers a reasonable run of verge on a standard domestic roof without needing to order multiple smaller quantities.
Pro Tip: When fitting batten end clips, make sure the batten end is cut square and sits flush before clipping, as a ragged or angled cut will stop the clip seating properly and compromise the mechanical engagement.
Batten end clips are used on the verge edge of pitched roofs during new construction and re-roofing work. They are fitted wherever a dry verge system is used in place of a traditionally bedded mortar verge, which covers the vast majority of new domestic and light commercial roofing projects. The clips are suitable for use with standard timber battens across a range of tile and slate roof systems where a dry verge unit is specified.
Best For
Mechanically fixing dry verge units to batten ends
Not suitable for: Not suitable for use with mortar-bedded verge systems or as a replacement for full verge unit fixings. These clips secure the dry verge unit to the batten end only and do not replace any additional fixing points specified by the verge system manufacturer.
Fit each batten end clip to the top of the batten at the verge edge before or during installation of the dry verge unit. The clip seats over the batten end and engages with the face of the batten to provide the mechanical connection required by BS 5534 and BS 8612. Ensure the batten end is cleanly cut and square for the clip to seat correctly.
Cut the roofing batten square at the verge edge to ensure a clean, flat end face for the clip to engage with.
Position the batten end clip over the top of the batten at the verge, aligning it with the end face.
Press the clip firmly into place so it seats securely on the batten top and engages the end face.
Fix the dry verge unit onto the clip in accordance with the verge system manufacturer's instructions.
Check that the clip is fully engaged and the dry verge unit is held firmly before moving to the next batten.
Do batten end clips work with all dry verge systems?
Most proprietary dry verge units are designed to accept a batten end clip as the mechanical fixing at the verge. It is worth checking the specific dry verge manufacturer's guidance to confirm compatibility, as clip profiles can vary slightly between systems.
Why are batten end clips required rather than just relying on the dry verge unit clipping onto the batten?
BS 5534 and BS 8612 both require a positive mechanical fixing at the verge rather than friction or snap-fit engagement alone. A batten end clip provides that mechanical connection into the face of the batten, which is what building inspectors and warranty providers look for on inspections.
Batten end clips are purpose-made fixings designed to provide mechanical engagement between a dry verge unit and the end face of a timber roofing batten. Their design allows the clip to seat on top of the batten and grip the end grain face, satisfying the requirements of BS 5534 for mechanical fixing at the verge and BS 8612 for face-of-batten engagement on dry verge products.
Pack Quantity
50
SKU
RPUBEC50
Application
Dry verge fixing at batten end
Relevant Standards
BS 5534, BS 8612
Fixing Location
Top of batten, verge edge
